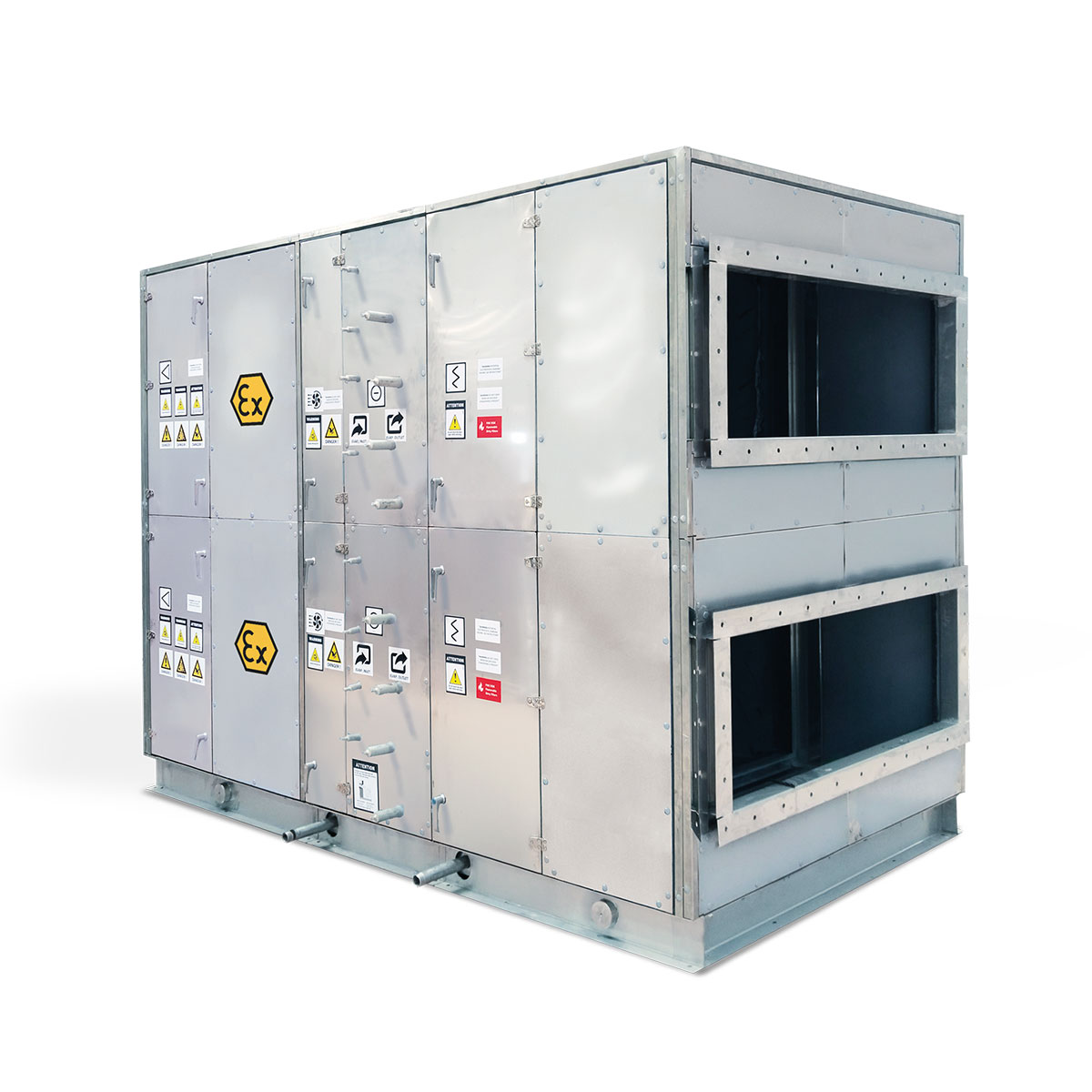

Offshore Air Handling Units developed by LUFT HVAC are specially designed for offshore platforms, coastal facilities, and industrial areas with a high risk of corrosion. With premium material quality, ATEX compliance, and high-performance filtration systems, they ensure both safety and comfort. They provide maximum durability and safety under the most challenging environmental conditions.

Key Features

  • System options compliant with ATEX Zone 1 / Zone 2 / Safe Zone
  • High structural strength and air tightness according to EN 1886: TB1, T2, D1, L1, F9
  • Airflow range from 1,000 to 200,000 m³/h
  • High-efficiency filtration systems

Optional Features

  • Stainless Steel Plenum Fans
  • ATEX-Certified Stainless Steel Accessories
  • Mechanical Strength and Casing Airtightness (FAT) Tests
  • Electrical equipment and control panels in IP56 / IP66 protection class (ATEX compliant)
  • Coils with 316 stainless steel, titanium and C5-M level Blygold® Anti-Corrosion Coating
  • Casing options with C5-M level Blygold® Anti-Corrosion Coating and 316L stainless steel, designed for highly humid and saline corrosive environments
